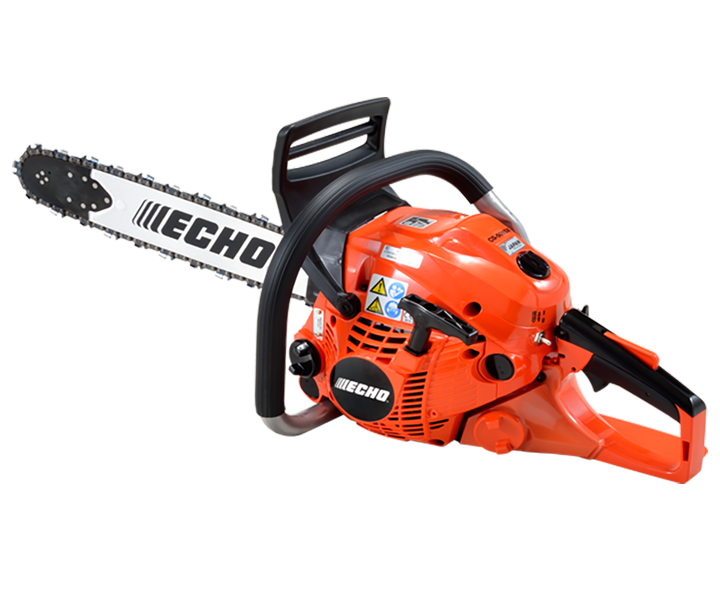

A 50.2cc chainsaw with 2.57 kW output and a 45 cm bar. Captive bar nuts, a split crankcase and adjustable chain oiling support demanding cutting work.
Features and benefits
- X Series engine uses a split crankcase and twin-ring piston.
- Manual decompression assists starting.
- Captive bar nuts, side tensioning and tool-free filter access simplify servicing.
- Vibration reduction and adjustable oil delivery support sustained cutting.
Technical specifications
| Engine displacement (cm³) | 50.2 |
|---|---|
| Output (kW) | 2.57 |
| Dry Weight (kg) | 4.7 |
| Fuel tank capacity (l) | 0.50 |
| Sound power level (dB(A)) | 113.1 |
| Sound pressure level (dB(A)) | 105.5 |
| Vibration Front handle/Rear handle (m/s²) | 5.5 / 5.8 |
| Chain Brake | Inertia |
| Chain Oil Tank Capacity (mL) | 280 |
| Chain Tensioner | Side |
| Choke w/ Automatic Fast Idle Release | Yes |
| Fuel Consumption At Maximum Engine Power (L/h) | 1.54 |
| Ignition System | CDI |
| Saw Chain Pitch (inch) | 0.325 |
| Start Assist System | Decomp |
Technical details checked against ECHO Australia. Supplied cutting equipment follows the configuration stated in this listing.
