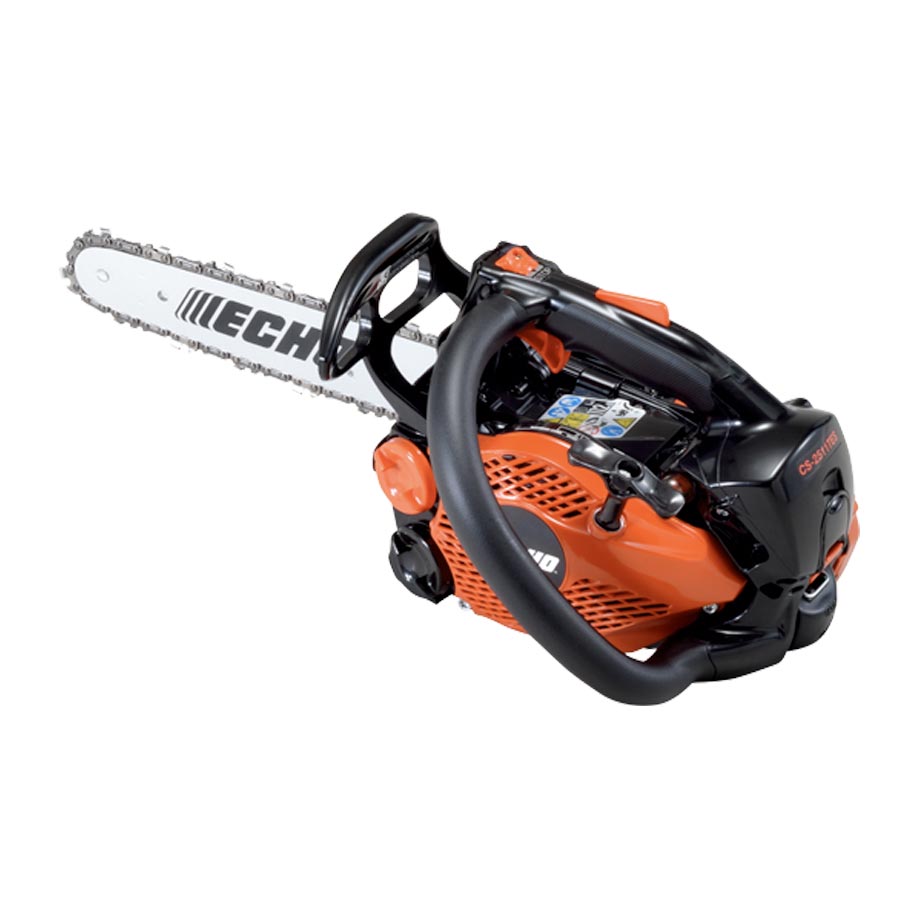

A compact top-handle chainsaw with a 25cc engine and 30 cm bar. Easy-start assistance and a side-access adjuster support professional arborist work.
Features and benefits
- Compact top-handle design with a 2.3 kg dry powerhead.
- ES-Start assistance, side-mounted tensioner and inertia brake.
- The starter grip can help open the tank caps.
- For trained arborists. This listing retains the supplier’s 30 cm bar configuration; the current Australian product page describes a 25 cm standard bar.
Technical specifications
| Engine displacement (cm³) | 25.0 |
|---|---|
| Output (kW) | 1.11 |
| Dry Weight (kg) | 2.3 |
| Fuel tank capacity (l) | 0.19 |
| Sound power level (dB(A)) | 108.9 |
| Sound pressure level (dB(A)) | 99.7 |
| Vibration Front handle/Rear handle (m/s²) | 4.8 / 4.0 |
| Chain Brake | Inertia |
| Chain Oil Tank Capacity (mL) | 140 |
| Chain Tensioner | Side |
| Choke w/ Automatic Fast Idle Release | Yes |
| Fuel Consumption At Maximum Engine Power (L/h) | 0.68 |
| Ignition System | CDI |
| Priming Pump | Yes |
| Saw Chain Pitch (inch) | 3/8 |
| Start Assist System | ES-start |
Technical details checked against ECHO Australia. Supplied cutting equipment follows the configuration stated in this listing.
