- Description: Rapid-Feed 400 Universal Multi-Fit Premium Bump Feed Trimmer Head Suits Left &
- Right Hand Straight & Bent Shaft Trimmers
- Editorial: Take the effort out of reloading trimmer line with the Rapid-Feed 400 fast loading,
- bump feed nylon head. Supplied with all of the most popular arbors and studs,
- suitable for left hand straight shaft trimmers or right hand bent shaft trimmers,
- and packed for retail display this nylon head bursting with features will be a
- reliable and fast moving replacement part.
- Replaces OEM: Briggs & Stratton 99944200907_AAC, C6000109_AAC, C6000110_AAC.
- Echo C6000109.
- SHINDAIWA 78890-30000, C6000110.
- Speed Feed SF400, SF400/E1, SF400/S, SF400/S1,
- Features: Load trimmer line in 30 seconds.
- Fits straight and bent shaft trimmers.
- Can be used in left and right hand applications.
- Durable head for medium and heavy-duty applications.
- Oversized eyelets for maximum line life.
- Split spool for less tangles and reduced vibration.
- Holds up to 4 m of 2.4 mm trimmer line.
- Accepts up to 3.9 mm trimmer line.
- Replacement spare parts available.
- See below and inside package for fitting/loading instructions and replacement spare
- parts.
- Fits: Echo selected brushcutters, trimmers and attachments including but not limited to
- DPAS-300, ECST-58V, GT-222ES, GT-22GES, GT-222ES, SRM-22GES, SRM-222ES, SRM-2305SI,
- SRM-236, SRM-236ES, SRM-236TES, SRM-2620ES, SRM-2620TE, SRM-2620TES, SRM-265,
- SRM-265TES, SRM-2655SI, SRM-300ES, SRM-300TES, SRM-3020TES, SRM-335ES, SRM-335TES,
- DPAS-TRIMMER, ECDST-58V and MTA-TB models.
- Fits: Shindaiwa selected brushcutters, trimmers and attachments including but not limited
- to C263SX, C303TS, T236TS, T263SX, T303TS models.
- Fits: A universal multi-fit trimmer head supplied with all popular arbors and adaptor
- sizes, fitting the most popular trimmers and brushcutters on the market today.

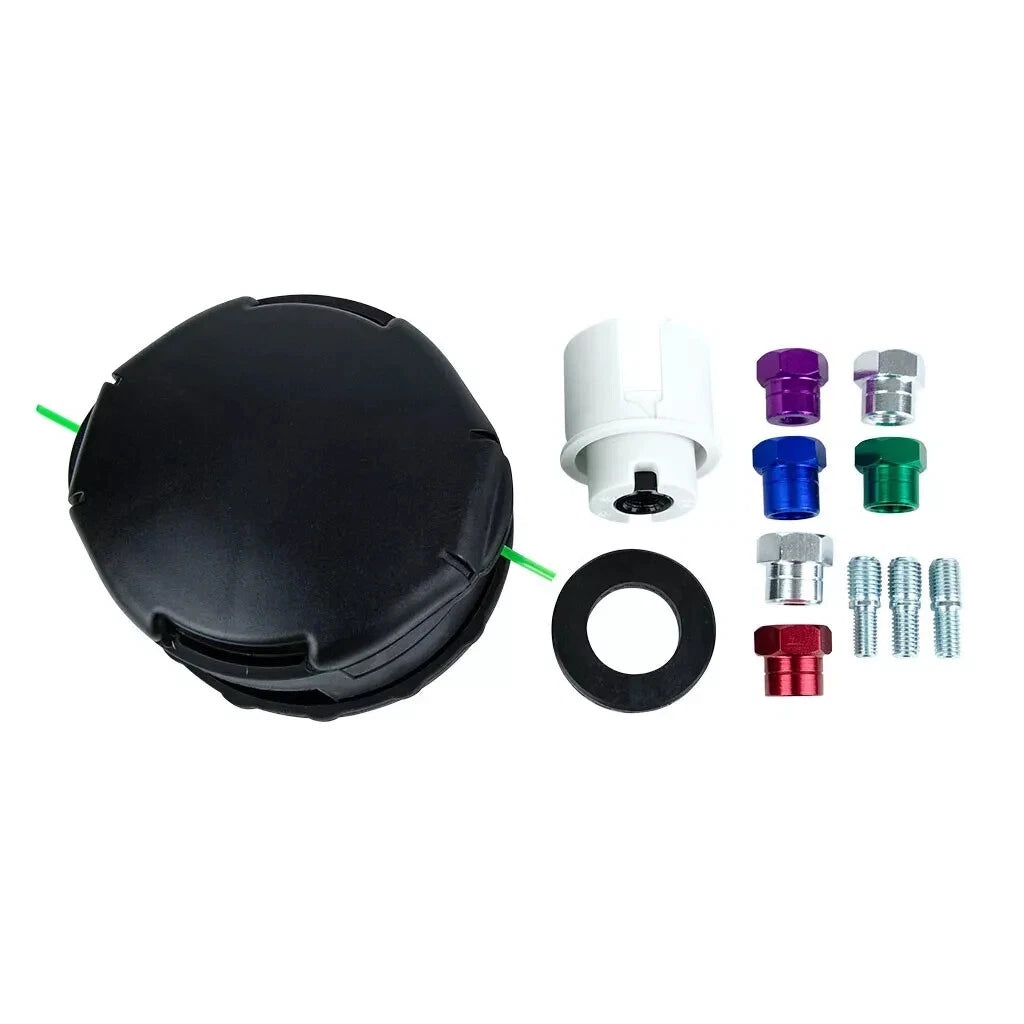

- Kit consists of: Left Hand Components - Straight Shaft Trimmers:-
- Left Hand Nylon Adapter (Black) fitted.
- M10 x 1.25 LH (Gold) fitted.
- M10 x 1.25 LH (Blue).
- M10 x 1.00 LH (Green).
- M9 x 1.25 LH (Silver).
- M8 x 1.25 LH (Red).
- Stud M7 X 1.0 LH x M10 x 1.25 LH.
- Stud M8 x 1.25 LH x M10 x 1.25 LH.
- Right Hand Components - Bent Shaft Trimmers:-
- Right Hand Nylon Adapter (White).
- M8 x 1.25 RH (Purple).
- 3/8” - 24 RH (Black).
- Stud M8 x 1.25 RH x 3/8” - 24 RH.
- Standard Pack Quantity: 1
- Note: Fitting Instructions:-
- REMOVE - 1. Using the tools supplied with your equipment, REMOVE old trimmer head
- by locking the gearbox and twisting trimmer head off. Head will loosen clockwise
- for straight shaft trimmers and anti-clockwise for bent shaft trimmers.
- IDENTIFY - 2. IDENTIFY the appropriate adaptor by fitting to exposed thread (the
- correct adaptor may already be fitted in the trimmer head).
- INSTALL - 3. INSTALL the selected adaptor to head and twist on tightly with gearbox
- locked (only use the plastic spacer when required to avoid interference with grass
- guard on some units, remaining unused adaptors can be disposed).
- Reloading Trimmer Line Instructions -
- ALIGN - 1. Hold base and twist trimmer head to ALIGN arrows with eyelets.
- FEED - 2. Cut a length and FEED trimmer line directly through head so that half is
- protruding each side. As a guide use 4 m of 2.4 mm (.095”) line. Please note that
- differing line thickness and shape will affect the line capacity.
- TWIST - 3. Hold base and TWIST trimmer head to feed line on.
- Please Note: Replacement Spare Parts are available:-
- Head Cover: BRN8562.
- Spring: BRN6931.
- Spring Cap: BRN6940.
- Spool: BRN8564.
- Warning: To avoid possible injury:
- Ensure this attachment is tightened securely.
- Ensure the trimmer line is properly positioned within the grass guard and that the
- line makes contact with the cutting knife on the grass guard when fully extended.
- Only use Prokut Spare Parts in this product, quality of any other replacement parts
- is not guaranteed and could lead to damage or injury of the operator.
- Always wear personal protective equipment as described in your equipment’s
- operator manual.
- Always make sure bystanders are at least 15 m away before operating this product as
- flying debris can cause harm.
- Brand: PROKUT,
- Product Line: Bump Feed Nylon Trimmer Head, Head - Trimmer, Nylon Trimmer Head,
